INCH-POUND
MIL-DTL-11484/223B
10 March 2010
SUPERSEDING
MIL-DTL-11484/223A
27 September 1996
DETAIL SPECIFICATION SHEET

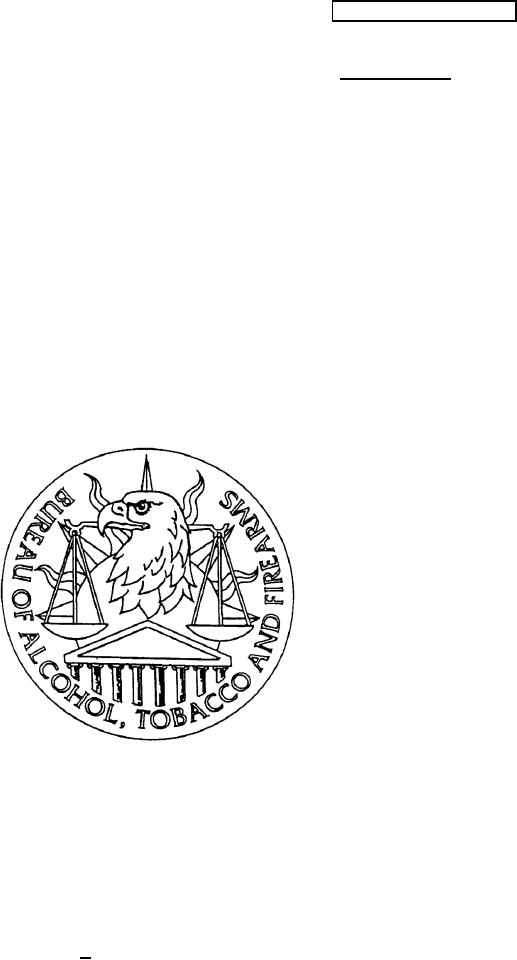

LAPEL BUTTON, MEDAL OF VALOR,
BUREAU OF ALCOHOL, TOBACCO AND FIREARMS
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-11484.
MATERIAL: Red Brass
FINISH: 24K Gold Plated, Matte Finish, Polished Highlights and shall match
The Institute of Heraldry (TIOH) Metal Finish Chip Number 8.
DIMENSIONS:
DIAMETER: 5/8 inch (REF)
THICKNESS (at edge): 0.085 inch + 0.005 inch
AMSC N/A
Page 1 of 2
FSC 8455
