INCH-POUND
MIL-DTL-11484/131D
23 January 2002
SUPERSEDING
MIL-DTL-11484/131C
27 September 1996
DETAIL SPECIFICATION SHEET

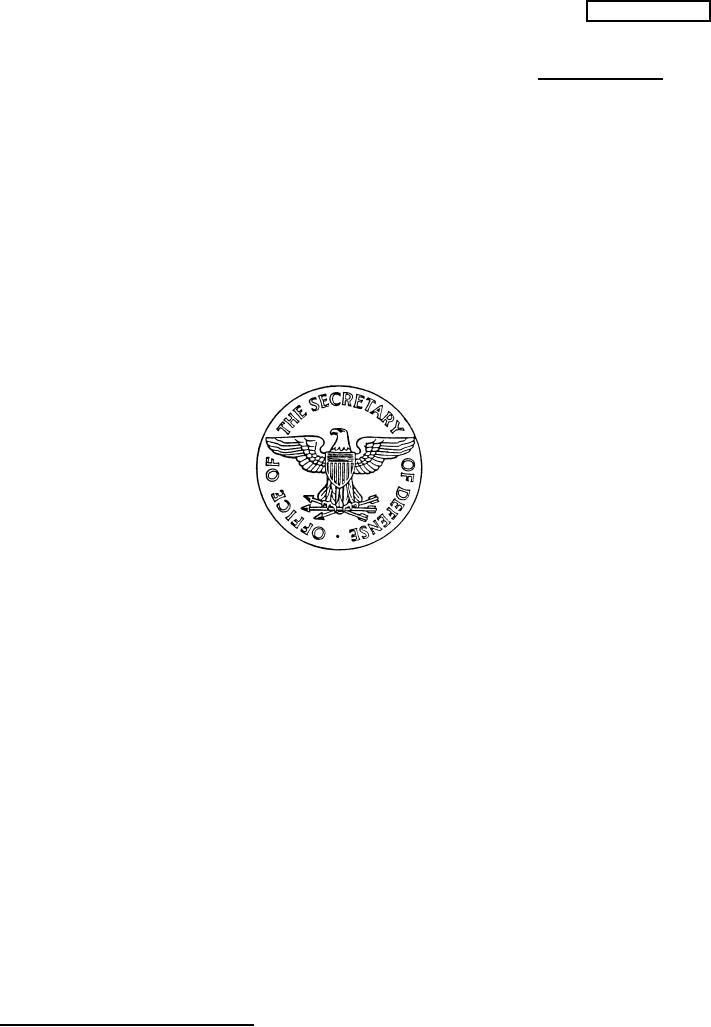

LAPEL BUTTON, EXCEPTIONAL CIVILIAN SERVICE MEDAL,
OFFICE OF THE SECRETARY OF DEFENSE
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the issue of MIL-DTL-11484 listed in that issue of the Department of
Defense Index of Specifications and Standards (DoDISS) specified in the solicitation.
MATERIAL: Red Brass
FINISH: Oxidized, Relieved, Matte Finished and shall match The Institute of Heraldry
(TIOH) Metal Finish Chip Number 4.
DIMENSIONS:
DIAMETER: 11/16 inch (REF)
THICKNESS (at edge): 0.065 inch ± 0.010 inch
NOTES:
1. The term (REF) refers to the measurements taken from the Government furnished
hub or die.
2. Attaching device shall be prong with pick and flat ball type clutch. The prong shall
be 3/8 inch long and shall be centered on the reverse side and fused or soldered to the
lapel button.
AMSC N/A
1 of 2
FSC 8455
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
