NOT MEASUREMENT SENSITIVE
MIL-DTL-11484/120D
27 September 1996
SUPERSEDING
MIL-L-11484/120C
14 January 1994
DETAIL SPECIFICATION SHEET

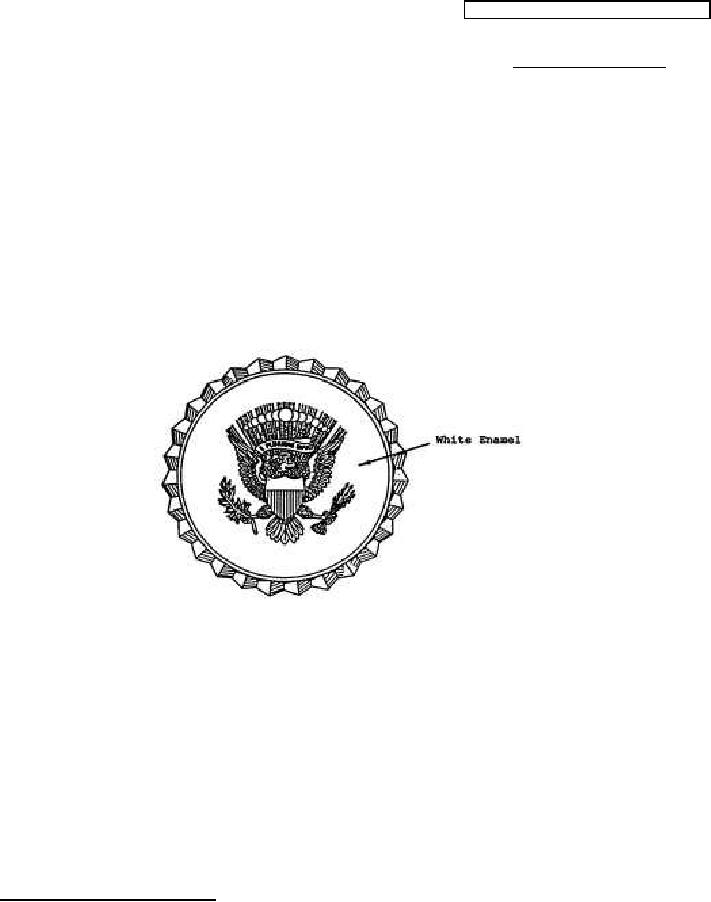

LAPEL BUTTON, VICE PRESIDENTIAL SERVICE IDENTIFICATION BADGE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and the issue of MIL-DTL-11484 listed in
that issue of the Department of Defense Index of Specifications and
Standards (DoDISS) specified in the solicitation.
MATERIAL:
BASE:
Gilding Metal
DEVICE:
Red Brass or Gilding Metal
FINISH:
BASE:
Hard Enameled, Gold Plated, Matte Finish, Peaks of Rays
Polished and shall match TIOH Metal Finish Chip Number 8.
DEVICE:
Gold Plated, Matte Finish, Polished Highlights and shall match
TIOH Metal Finish Chip Number 8.
DIMENSIONS:
BASE:
DIAMETER (Outside):
9/16 inch (1.43 cm) (REF)
THICKNESS (At Edge):
0.070 inch + 0.005 inch - 0 (0.178 cm +
0.012 cm - 0)
AMSC N/A
FSC 8455
DISTRIBUTION STATEMENT A.
Approved for public release; distribution is unlimited.
1 of 2
