NOT MEASUREMENT SENSITIVE
MIL-DTL-11132/7E
6 June 1997
SUPERSEDING
MIL-I-11132/7D
17 January 1995
DETAIL SPECIFICATION SHEET

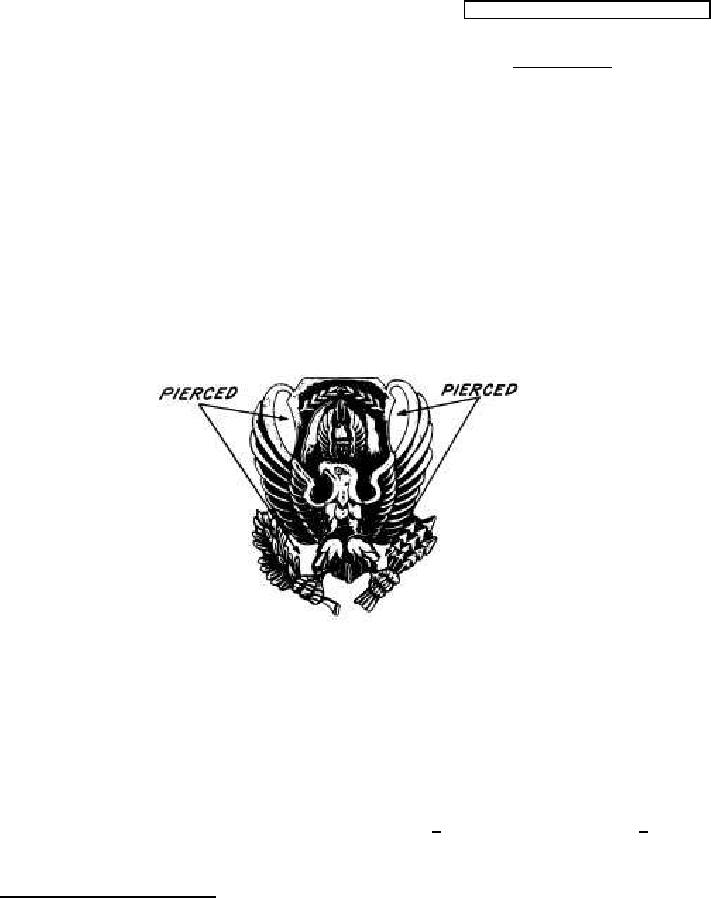

INSIGNIA, BRANCH OF SERVICE, ROTC, AIR FORCE
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and the issue of MIL-DTL-11132 listed in
that issue of the Department of Defense Index of Specifications and
Standards (DoDISS) specified in the solicitation.
DASH NO.
-1:
ROTC
MATERIAL:
Nickel Silver or Red Brass
-2:
JROTC (See Note 2)
FINISH:
Nickel Plated (Red Brass only), Silver Plated, Oxidized,
Relieved, Matte Finish and shall match TIOH Metal Finish Chip
Number 14.
DIMENSIONS:
HEIGHT (Overall): 1 inch (2.54 cm) (REF)
WIDTH (Overall):
13/16 inch (2.06 cm) (REF)
THICKNESS (At Thickest Point): 0.105 inch + 0.005 inch (0.267 cm +
0.012 cm)
AMSC N/A
FSC 8455
DISTRIBUTION STATEMENT A.
Approved for public release; distribution is unlimited.
1 of 2
