INCH-POUND
MIL-DTL-11132/4G
16 October 2001
SUPERSEDING
MIL-DTL-11132/4F
6 June 1997
DETAIL SPECIFICATION SHEET

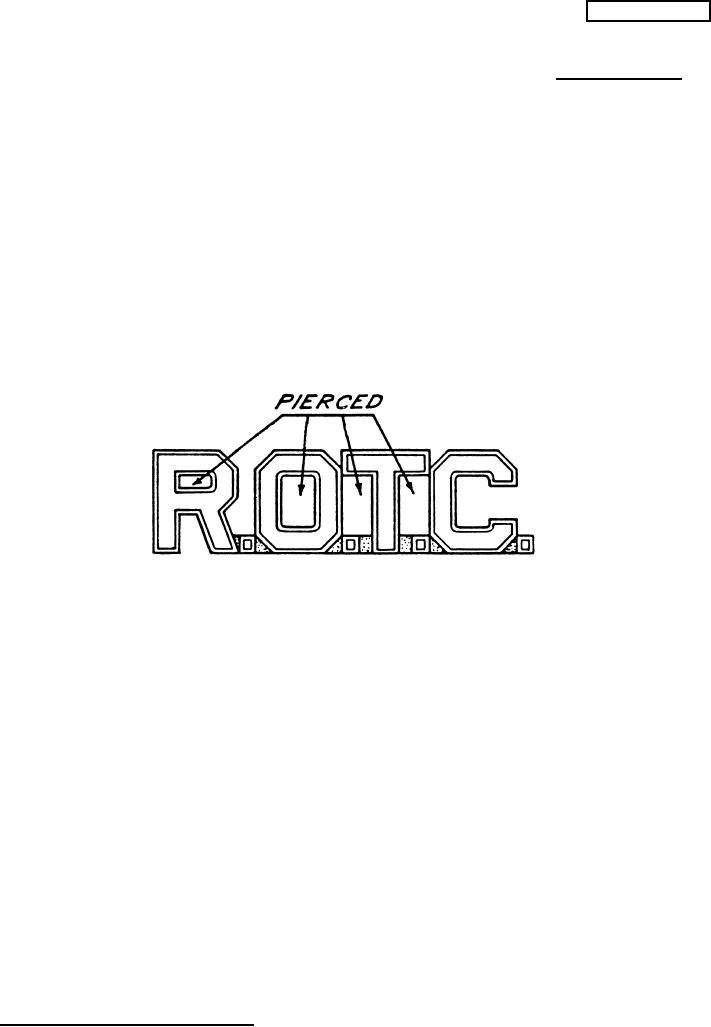

INSIGNIA, BRANCH OF SERVICE, ADVANCE COURSE, SENIOR DIVISION
AND CADET OFFICER, JUNIOR DIVISION, ROTC, ARMY
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and the issue of MIL-DTL-11132 listed in that issue of the Department of
Defense Index of Specifications and Standards (DoDISS) specified in the solicitation.
DASH NO.
-1: Regular
MATERIAL:
-2: Subdued
-1: Red Brass
-2: Red Brass or Zinc Aluminum
FINISH:
-1: Mirror-like Polished and shall match The Institute of Heraldry (TIOH) Metal Finish
Chip Number 1.
-2: Dull, Flat Black Enamel.
DIMENSIONS:
HEIGHT (overall): 3/8 inch (REF)
WIDTH (overall): 1-3/8 inches (REF)
THICKNESS (at thickest point): 0.075 inch ± 0.005 inch
AMSC N/A
1 of 2
FSC 8455
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
