INCH-POUND
MIL-DTL-3628/61E
30 June 2014
SUPERSEDING
MIL-DTL-3628/61D
15 November 1996
DETAIL SPECIFICATION SHEET

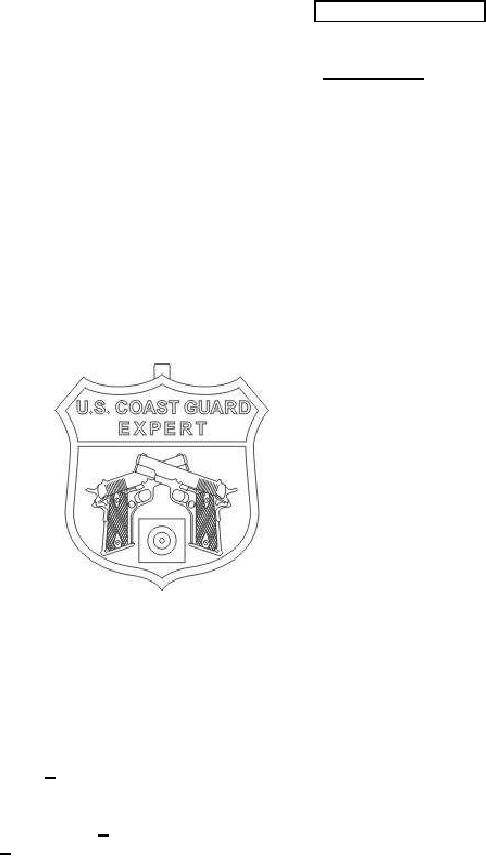

BADGE, QUALIFICATION, EXPERT PISTOL, U.S. COAST GUARD
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.
MATERIAL: Red Brass 85/15 (UNS Alloy No.C-230)
FINISH: Oxidized, Relieved, Matte Finish, and shall match The Institute of Heraldry Metal
Finish Chip Number 4.
DIMENSIONS:
HEIGHT (Excluding lug): 1-5/16 inches (REF)
WIDTH (Overall): 1-5/16 inches (REF)
THICKNESS (At edge): 0.100 inch + 0.010 inch
LUG:
1. Lug for shall be formed from 0.050 inch + 0.002 inch diameter brass wire and shall have an
outside diameter of 13/64 inch + 1/64 inch.
2. The lug for -2 shall be an integral part of the pendant.
3. Lug shall be hard soldered to the top of the pendant.
AMSC N/A
Page 1 of 2
FSC 8455
