INCH-POUND
MIL-DTL-3628/102C
28 April 2014
SUPERSEDING
MIL-DTL-3628/102B
25 March 2002
DETAIL SPECIFICATION SHEET
BADGE, OCCUPATIONAL, OPERATIONS SUPPORT, U. S. AIR FORCE
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-3628.
DASH NO.

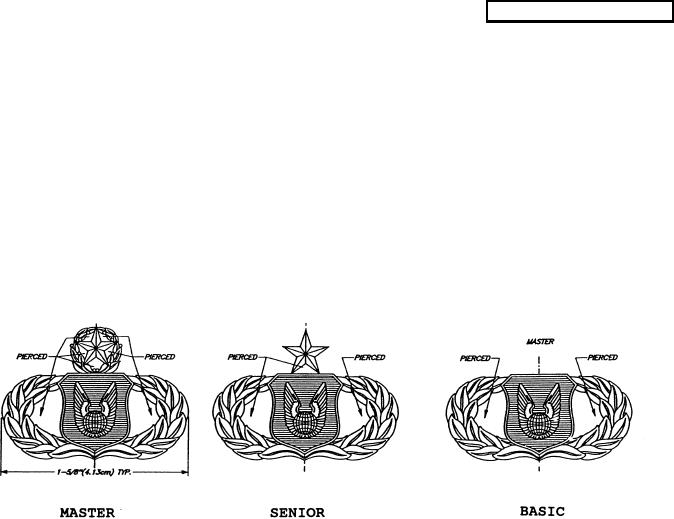

-1: Basic, Regular Size
-4: Basic, Mid Size
-2: Senior, Regular Size
-5: Senior, Mid Size
-3: Master, Regular Size
-6: Master, Mid Size
MATERIAL: Red Brass 85/15 (UNS Alloy C-230) or Nickel Silver 65/35 (UNS Alloy No. 752)
FINISH: Nickel Plated (Red Brass Only), Mirror-like Polished and shall match The Institute
of Heraldry Metal Finish Chip Number 16.
DIMENSIONS:
HEIGHT (Overall):
-1: 25/32 inch (REF)
-2: 1-3/16 inches (REF)
-3: 1-3/16 inches (REF)
-4: 19/32 inch (REF)
-5: 29/32 inch (REF)
-6: 29/32 inch (REF)
AMSC N/A
1 of 2
FSC 8455
