INCH-POUND
MIL-DTL-15665/24H
9 January 2014
SUPERSEDING
MIL-DTL-15665/24G
30 December 2007
DETAIL SPECIFICATION SHEET

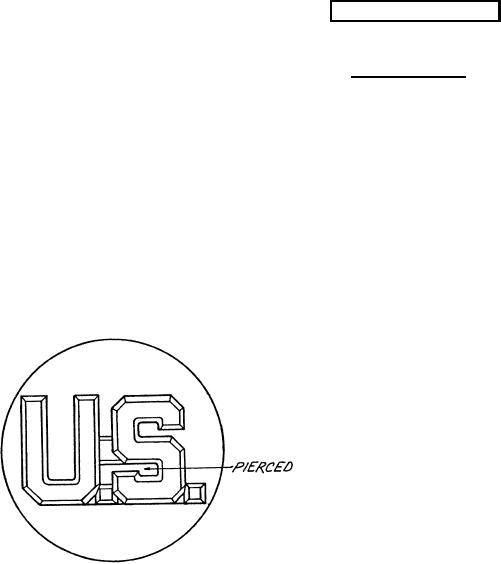

INSIGNIA, COLLAR, "U.S.", ENLISTED, U. S. ARMY
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-15665.
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230)
FINISH:
DISC: Nickel Plated, 22K Gold Plated, Mirror-like Polished, and shall match The Institute
of Heraldry (TIOH) Metal Finish Chip No. 9.
DEVICE: Nickel Plated, 22K Gold Plated, Polished Highlights.
DIMENSIONS:
DISC:
DIAMETER: 1 inch + 1/64 inch - 0
THICKNESS: 0.040 inch ± 0.005 inch
DEVICE:
HEIGHT (Overall): 1/2 inch (REF)
WIDTH (Overall): 3/4 inch (REF)
THICKNESS (At thickest point): 0.055 inch ± 0.005 inch
AMSC N/A
Page 1 of 2
FSC 8455
