NOT MEASUREMENT SENSITIVE
MIL-DTL-14639/19E
30 January 1998
SUPERSEDING
MIL-DTL-14639/19D
29 January 1996
DETAIL SPECIFICATION SHEET
INSIGNIA, GRADE, TECHNICAL SERGEANT, AIR FORCE
This specification is approved for use by all Departments and Agencies
of the Department of Defense
The requirements for acquiring the product described herein shall
consist of this specification sheet and the issue of MIL-DTL-14639 listed in
that issue of the Department of Defense Index of Specifications and
Standards (DoDISS) specified in the solicitation.
DASH NO.
-1:
Regular
MATERIAL:
Gilding Metal
-2:
Subdued

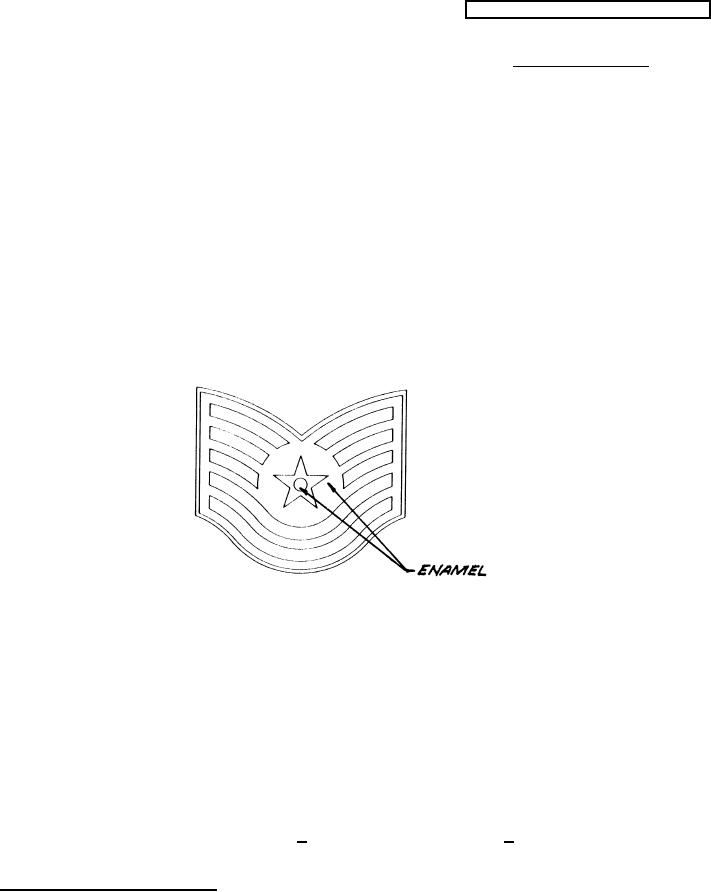

FINISH:
-1:
Hard Enameled, Nickel Plated, Mirror-like Polished and shall
match TIOH Metal Finish Chip Number 16.
-2:
Dull Flat Olive Drab Enamel in Recessed Areas and Dull Flat Black
Enamel on Raised Areas.
DIMENSIONS:
HEIGHT (Overall): 29/32 inch (2.30 cm) (REF)
WIDTH (Overall): 1-3/32 inches (2.78 cm) (REF)
THICKNESS (Edge): 0.065 inch + 0.010 inch (0.165 cm + 0.25 cm)
AMSC N/A
FSC 8455
DISTRIBUTION STATEMENT A.
Approved for public release; distribution is unlimited.
1 of 2
