INCH - POUND
MIL-DTL-11484/5E
22 February 2013
SUPERSEDING
MIL-DTL-11484/5D
27 September 1996
DETAIL SPECIFICATION SHEET

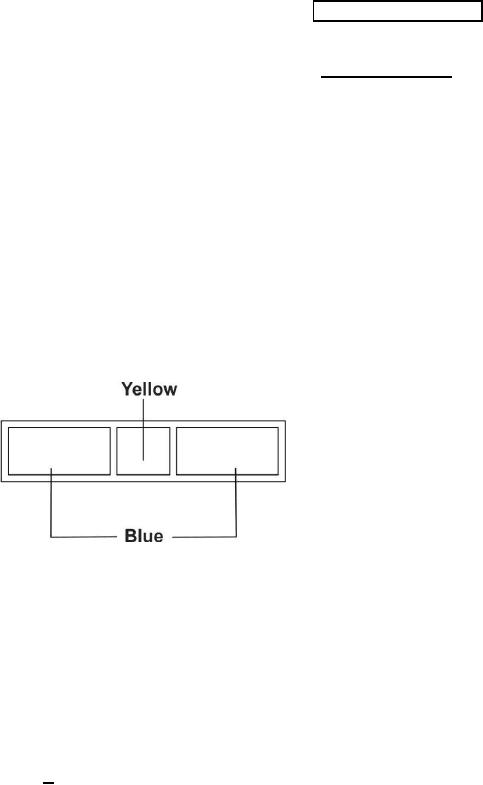

LAPEL BUTTON, DISTINGUISHED SERVICE MEDAL, U.S. NAVY AND
U.S. MARINE CORPS
This specification is approved for use by all
Departments and Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet and the latest issue of MIL-DTL-11484.
MATERIAL: Red Brass 85/15 (UNS Alloy No. C-230)
FINISH: Epoxy Resin, (Stoning epoxy) 24K Gold Plated, Mirror-like Polished and shall match
The Institute of Heraldry Metal Finish Chip Number 6.
DIMENSIONS:
HEIGHT (Overall): 9/64 inch (REF)
WIDTH (Overall): 21/32 inch (REF)
THICKNESS (At Edge): 0.065 inch + 0.005 inch
AMSC N/A
Page 1 of 2
FSC 8455
