NOT MEASUREMENT SENSITIVE
MIL-DTL-11132/34D
6 June 1997
SUPERSEDING
MIL-I-11132/34C
17 January 1995
DETAIL SPECIFICATION SHEET

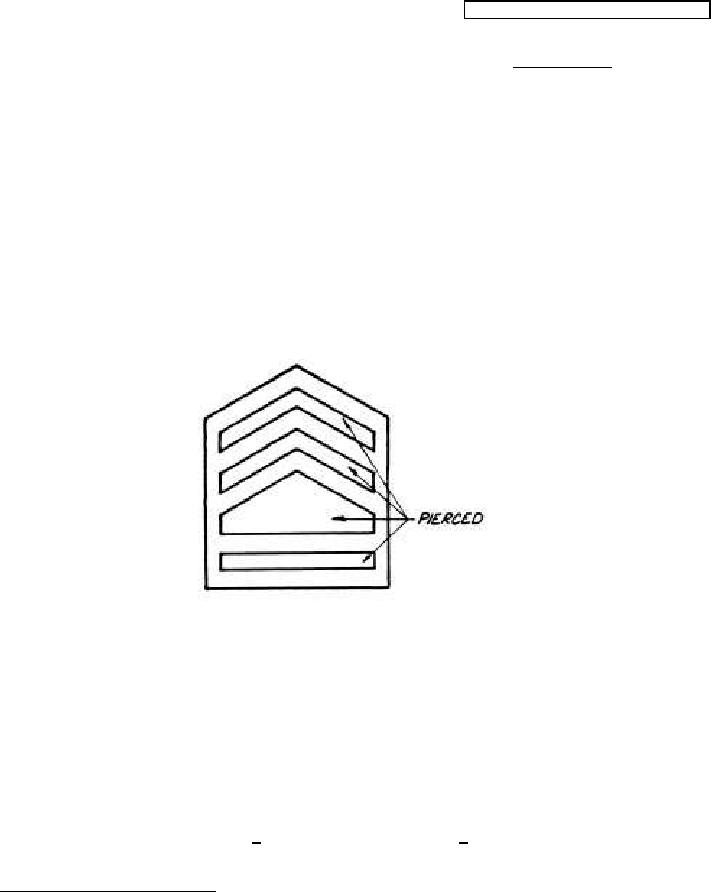

INSIGNIA, GRADE, SERGEANT FIRST CLASS, SENIOR DIVISION, ROTC, ARMY
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and the issue of MIL-DTL-11132 listed in
that issue of the Department of Defense Index of Specifications and
Standards (DoDISS) specified in the solicitation.
MATERIAL:
DASH NO.
-1:
Red Brass
-1: Regular
-2:
Red Brass or Zinc Aluminum
-2: Subdued
FINISH:
-1:
Mirror-like Polished and shall match TIOH Metal Finish Chip
Number 1.
-2:
Dull, Flat Black Enamel.
DIMENSIONS:
HEIGHT (Overall): 1-1/64 inches (2.58 cm) (REF)
WIDTH (Overall): 13/16 inch (2.06 cm) (REF)
THICKNESS: 0.060 inch + 0.005 inch (0.152 cm + 0.12 cm)
AMSC N/A
FSC 8455
DISTRIBUTION STATEMENT A.
Approved for public release; distribution is unlimited.
1 of 2
